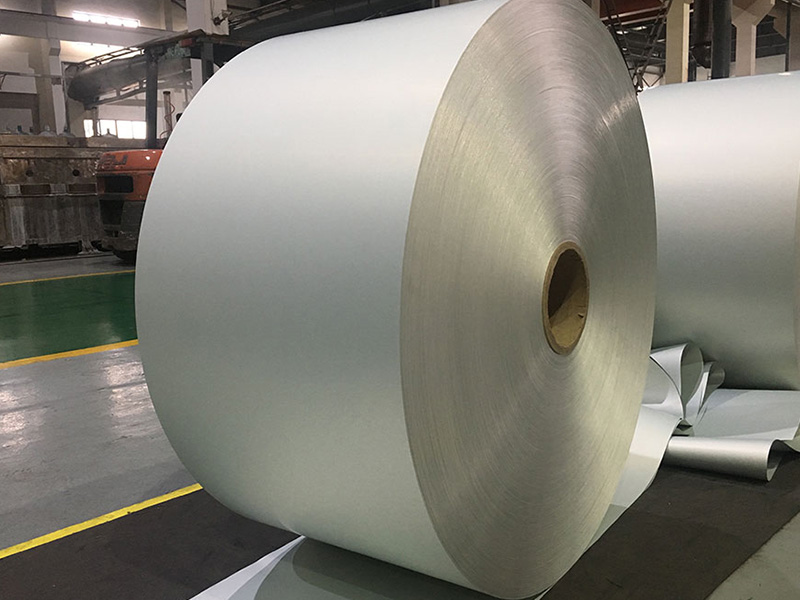

Molecular Sieve Coated Aluminum Foil

Key Technical Parameters

Base Material

· Material: 8011、1100、8079、3102-O、H22、H24、H26

· Thickness: 0.08~0.3mm

· Tensile Strength: ≥180 N/mm²

· Thermal Conductivity: ≥200 W/(m·K)

Coating

· Type: 3A/4A/13X Molecular Sieve

· Thickness: 15~30μm (Dry Film)

· Adhesion: ≥4B (ASTM D3359)

· Adsorption Capacity: ≥18% (25℃, RH60%)

· Temperature Resistance: -40~150℃

Heat & Moisture Exchange

· Sensible Heat Recovery Efficiency: ≥75%

· Latent Heat Recovery Efficiency: ≥65%

· Total Heat Recovery Efficiency: ≥70% (EN 308, 2.5m/s)

Processing & Specifications

· Roll Size: Width 500~1200mm; Inner Diameter 76/152mm

· Surface Condition: Uniform coating, no defects

· Customization: Cutting & thickness available

Core Advantages

1. High energy-saving efficiency

2. Stable performance & long service life (≥8 years)

3. Precise humidity control

4. Easy processing & corrosion resistance

5. VOC-free & eco-friendly

Main Applications

Commercial buildings, industrial plants, green buildings, transportation hubs (central air conditioning/constant temperature & humidity systems)
